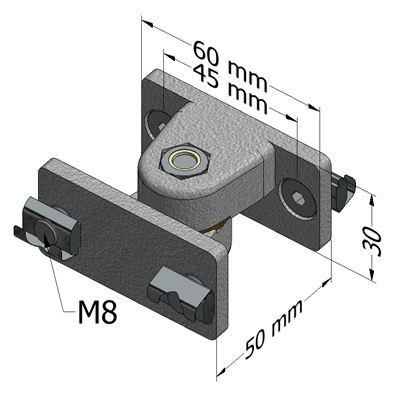

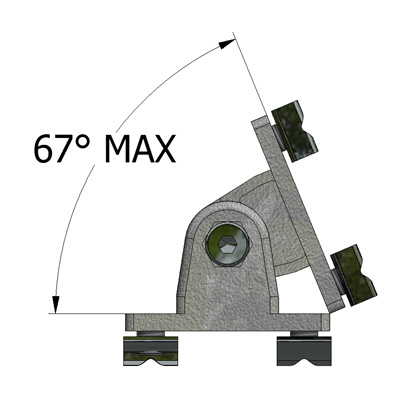

Swivel Link 30 F
Part. N° 21.2223
CAD DOWNLOAD ► 3D STEP | | Inventor 2020
| APPLICATIONS |
|---|
| - For use as a hinge |
| - For use with 30 series profiles |
| - For heavy doors, lids or articulating arms |
| - Mount to profile end or t-slot |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Cast aluminum, powder coated gray | |
| - Qty 1 M8x22 SHCS | |
| - Qty 1 M8 Hex Nut | |
| - Qty4 M8x10 SS Extra Low Head Cap Screw | |

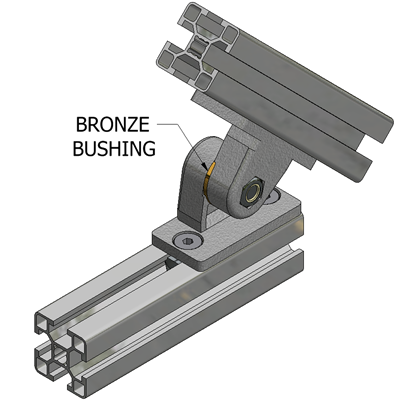

| -Qty 1 Bushing | |
| - Qty 4 M8 Nut 30 With Position Fixing | |
| - Weight | - .135 kg |
| ASSEMBLY |
|---|
| - Mount to 30 series t-slot with supplied hardware. |
